Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries. As an abrasive material and corrosive medium.

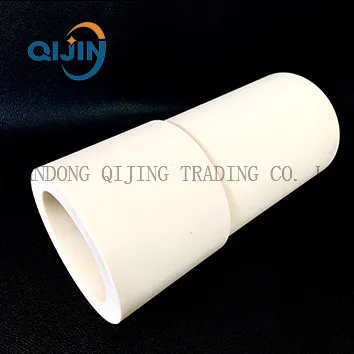

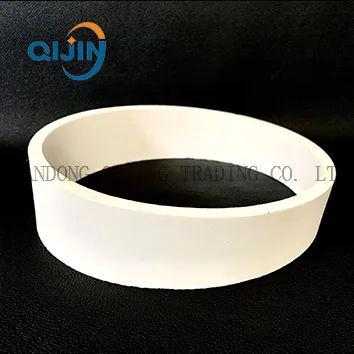

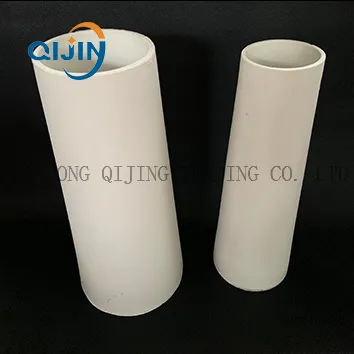

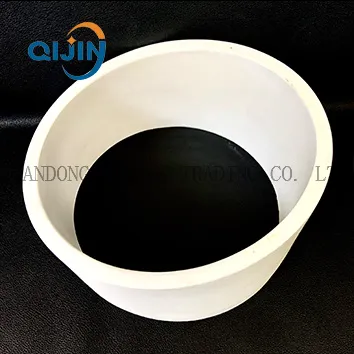

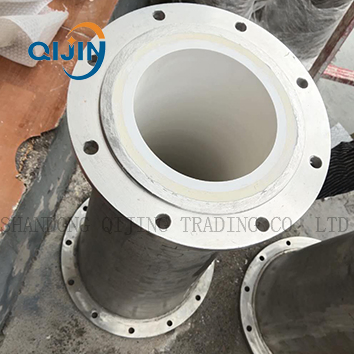

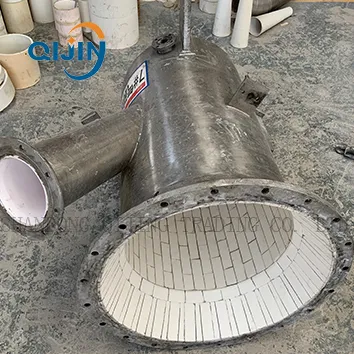

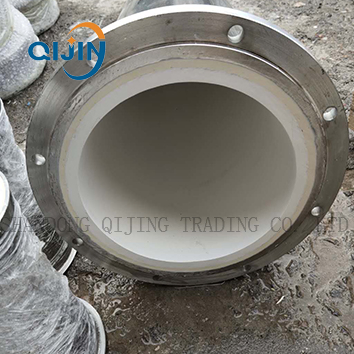

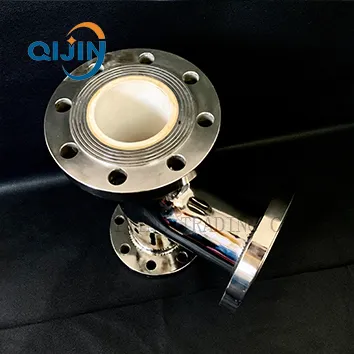

Industrial Ceramics is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, and is suitable for different high-temperature pipeline inner diameters.

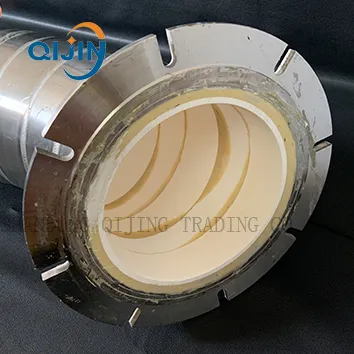

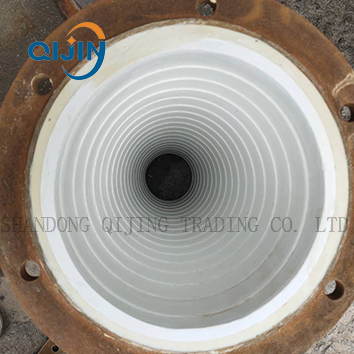

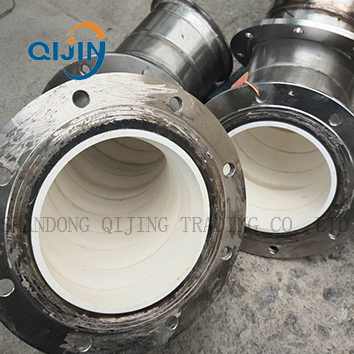

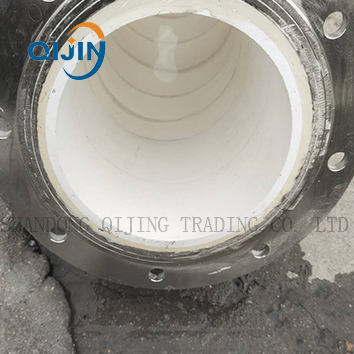

In addition to the ash removal, slag discharge pipe, powder feeding and powder returning pipes of coal-fired power plants, ceramic-lined wear-resistant steel pipes are also widely used in the following industries:

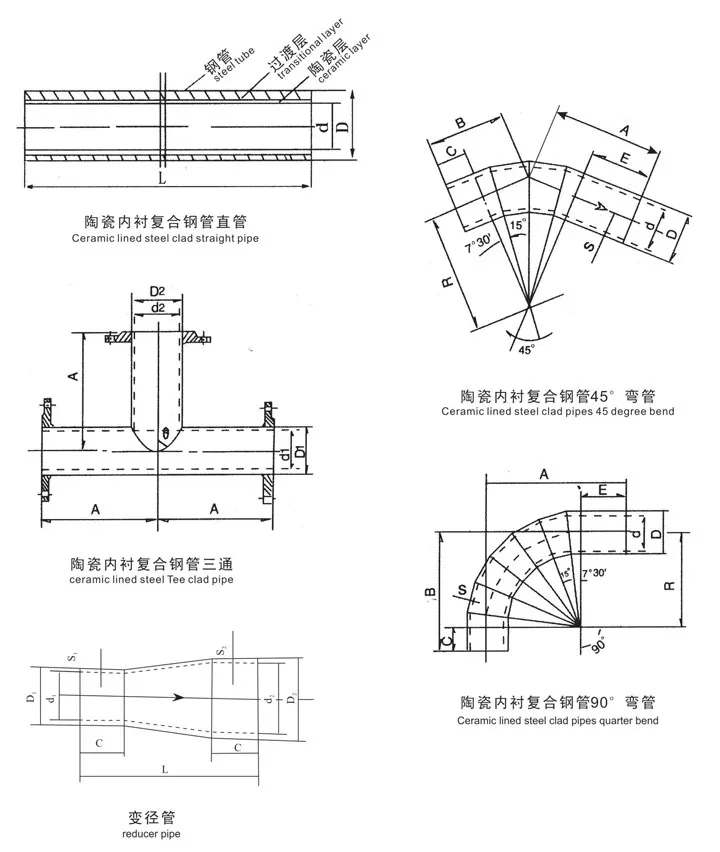

| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
|---|---|---|---|---|---|---|
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 152 | 182 | 15 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 101 | 131 | 15 | / | 500 | 5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Bend | 151 | 181 | 15 | / | 750 | 7.5 |
| Ceramic pipe sizes range: 10 ~ 500 mm | ||||||
The ceramic composite pipe has high hardness and good toughness, but it should be put gently to avoid serious collision, especially contact with metal instruments on the end surface.
2. DirectionalityThe bending pipe is installed with directivity. The direction indicated by the arrow on the surface should be consistent with the flow direction of the medium.
3. AlignmentThe pipe should be aligned with the center line. Displacement of both ends should be controlled within 1.0mm.
4. Flexible JointsInserted lengths shall be adjusted symmetrically. Since the thermal expansion is about 1/3 of steel, clearance can be reduced by 3-5mm.
5. Flange ConnectionThe flange end shall be flush with the end of the composite pipe.
6. WeldingWelding can be conducted using 45°-60° "V" type slope Angle of 2-4mm and gap of 0.8-1.2mm.
