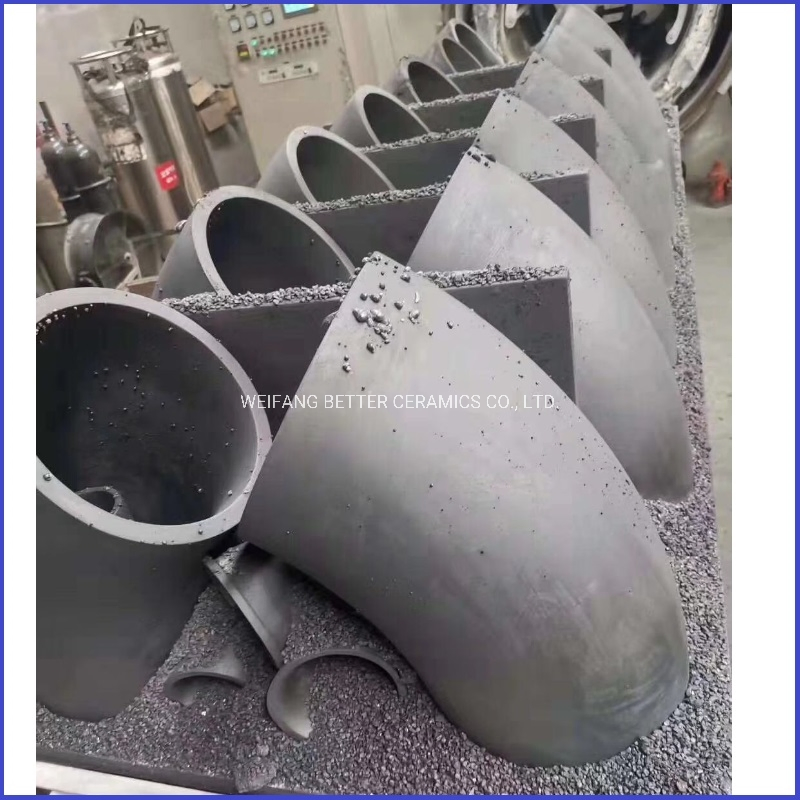

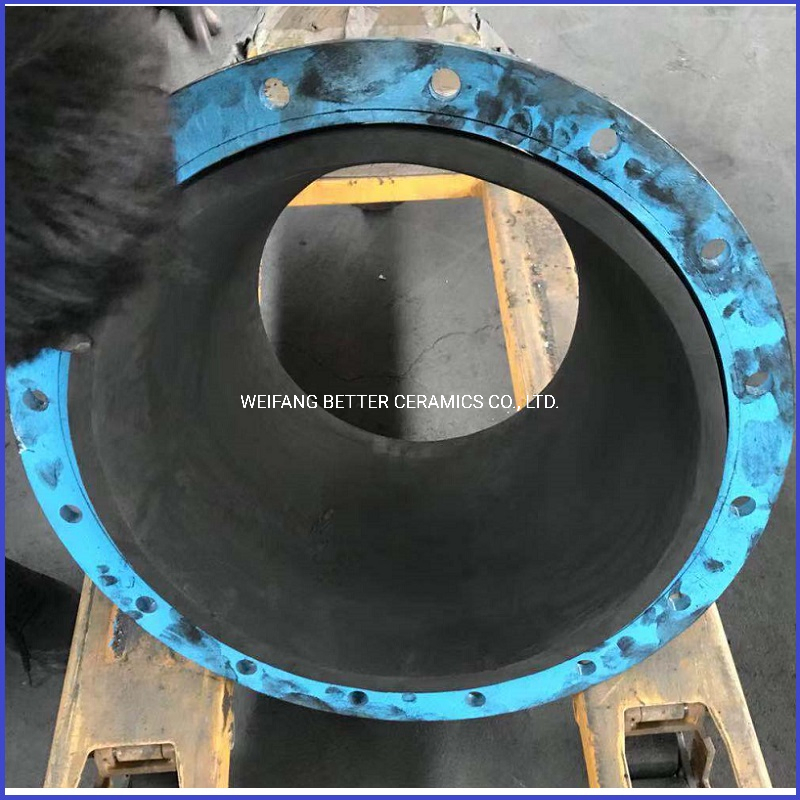

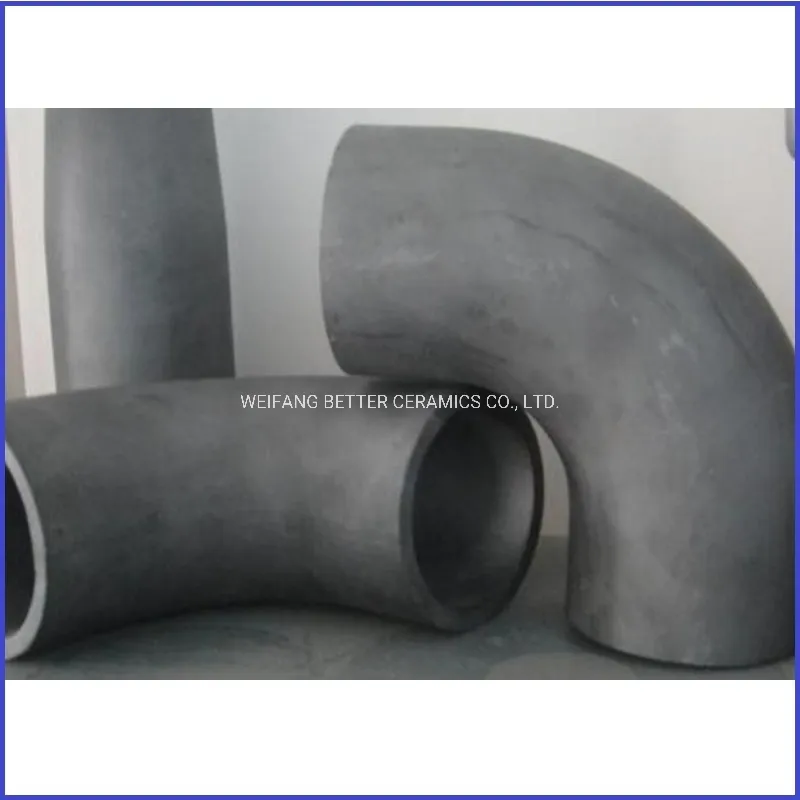

Steel Pipe/Bend Shape Lined with Silicon Carbide Ceramic Tube Liner

1 / 5

Steel Pipe/Bend Shape Lined with Silicon Carbide Ceramic Tube Liner

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.:customer needs

Shape:Pipe

Type:Refractory Material

Colour:Dark-gray

Model Number:SISIC

SiC Content (%):83.66%

Density:under 3.02 g/cm3

Open Porosity:<0.1%

Bending strength:250MPa/280MPa

Hardness:9.15 Moh's / 20Gpa Vickers

Material:Silicon Carbide (SiC)

HS Code:6903900000

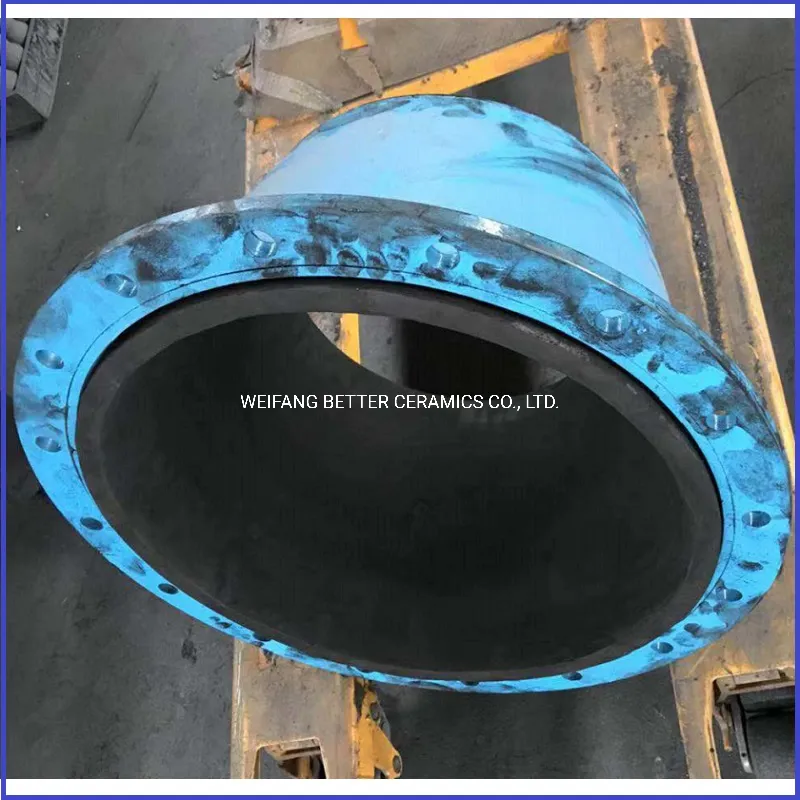

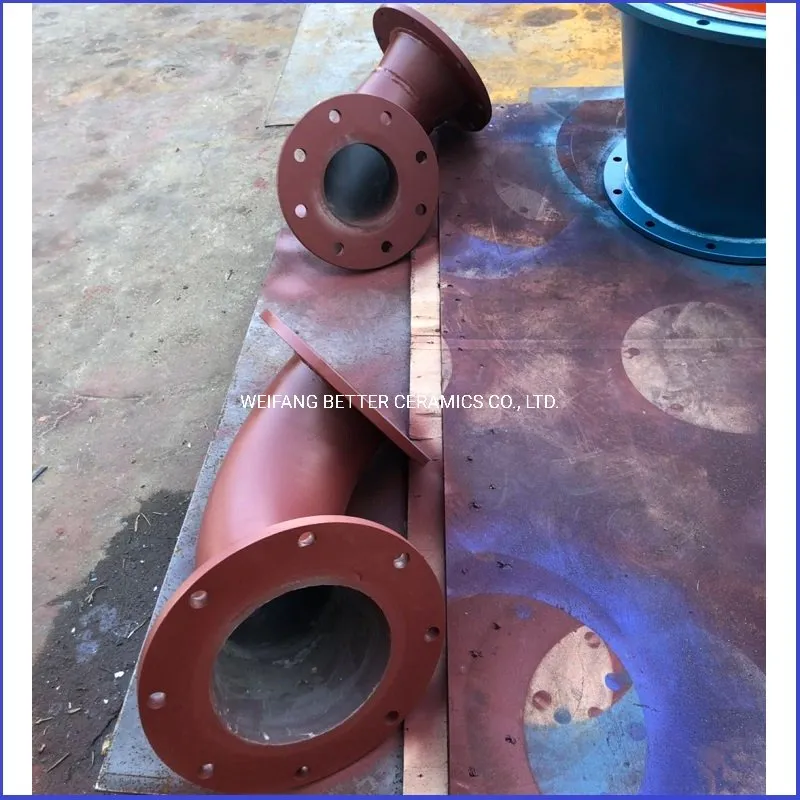

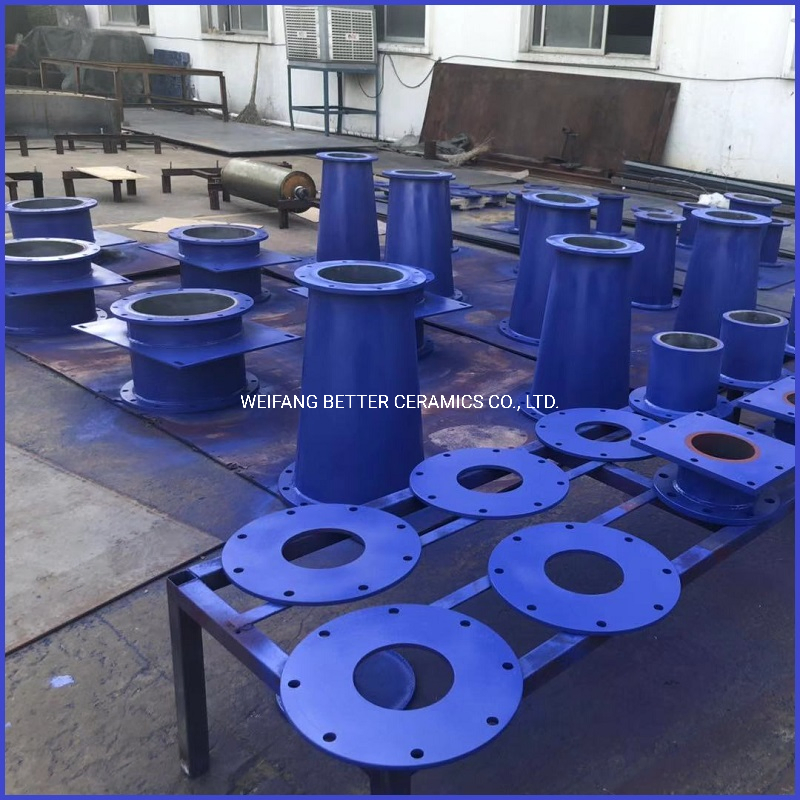

Steel Pipe Lined with Silicon Carbide Ceramic Tube Liner

🚀 Key Properties

Superior wear resistance, impact resistance and corrosion resistance
Excellent flatness and temperature resistance up to 1380ºC
Excellent oxidation resistance
Good dimensional control of complex shapes
Easy installation
Longer service life (about 5 times more than alumina ceramic)

Application & Versatility

RBSiC (SiSiC) silicon carbide parts are widely used for wear-resisting lining of hydraulic cyclones, flue gas desulphurization pipes and coal slurry conveyor pipelines.

Thickness available: 6mm - 25mm. Can be customized into pipes, cones, spray nozzles, elbows, and more.

Technical Parameters (RBSIC)

ITEM	UNIT	DATA
Max Temperature	ºC	1380
Density	g/cm³	≥3.02
Open Porosity	%	<0.1
Moh's Scale Hardness	-	13
Bending Strength (20ºC/1200ºC)	MPa	250 / 280
Thermal Conductivity (1200ºC)	W/m.k	45
Acid Alkaline-proof	-	Excellent

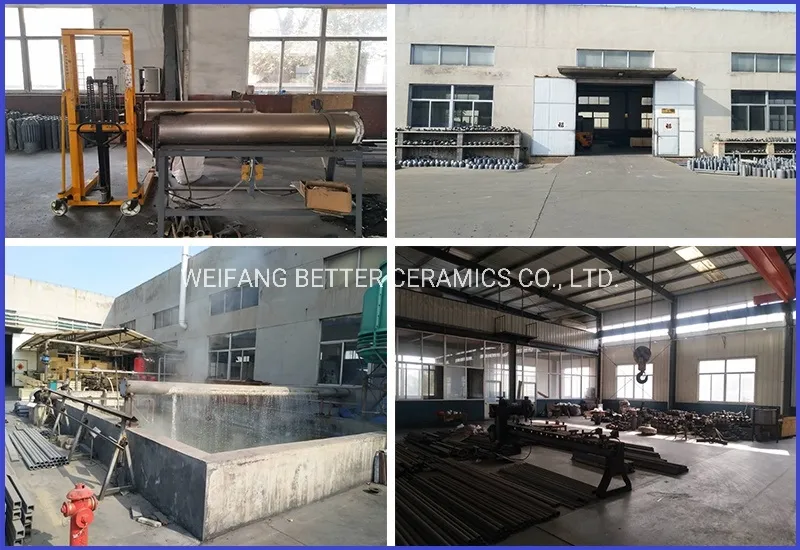

Exhibition & Production

Packing & Delivery

✔️ Export safe wooden boxes with internal filler
✔️ High quality outer cartons
✔️ Delivery: Within 5 days for stock items

Frequently Asked Questions

Q1: Are you a direct manufacturing factory? Yes, we are a direct manufacture factory specializing in RBSiC/SiSiC ceramics.

Q2: Can I request product samples? Yes, we can offer samples for free, though the freight cost is covered by the customer.

Q3: What are your standard payment terms? For orders under $1000, 100% in advance. For larger orders, 30% T/T in advance and balance before shipment.

Q4: How long does delivery typically take? Generally 5-10 days for stock items and 25-30 days for custom or non-stock production.

Q5: Can you produce items based on custom technical drawings? Yes, we can manufacture products according to your specific technical drawings and specifications.

Q6: Do you have a Minimum Order Quantity (MOQ)? We have no MOQ for trial orders to help you test your specific market entry.

Product Detail

Steel Pipe/Bend Shape Lined with Silicon Carbide Ceramic Tube Liner

Product Description

🚀 Key Properties

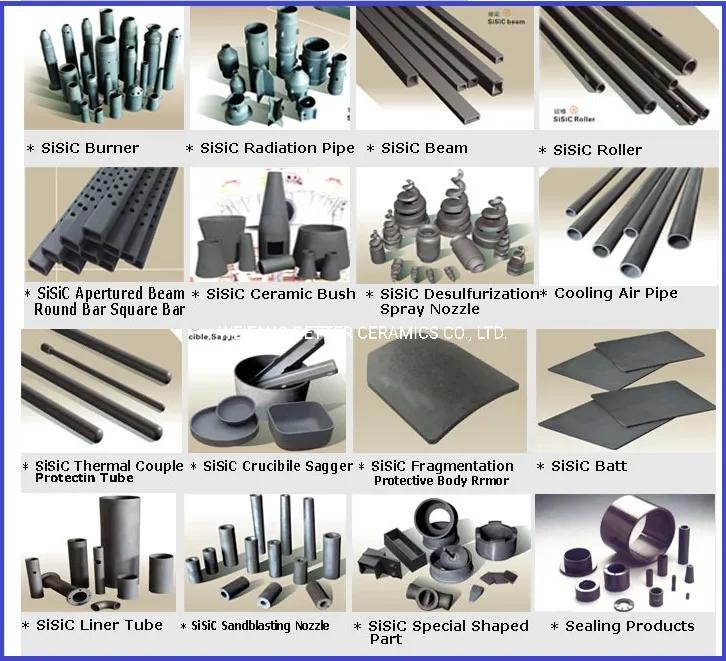

Related Products
