Xingli Industrial Ceramics
1 / 5
| Model NO. | FRZ644TC |
| Type | Straight-through |
| Material | Ceramic |
| Connection Form | Flange |
| Pressure | Ordinary Pressure |
| Actuator | Pneumatic |
| Seal Surface | Parallel Gate Valve |
| Usage | Drain, Flow Control |
| Standard | DIN |
| Package Size | 800.00cm * 800.00cm * 450.00cm |
| Gross Weight | 80.000kg |

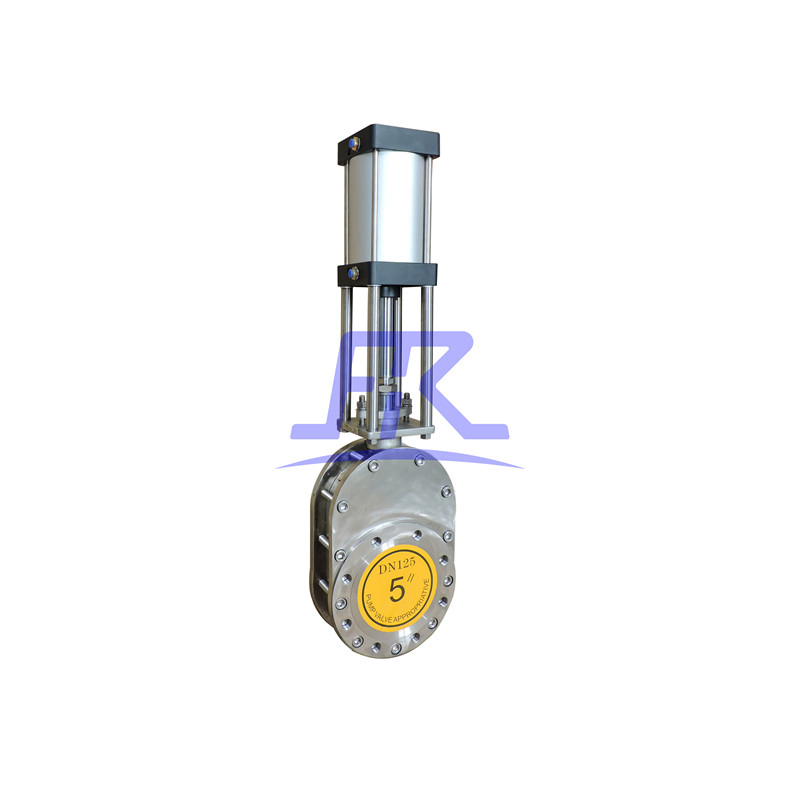

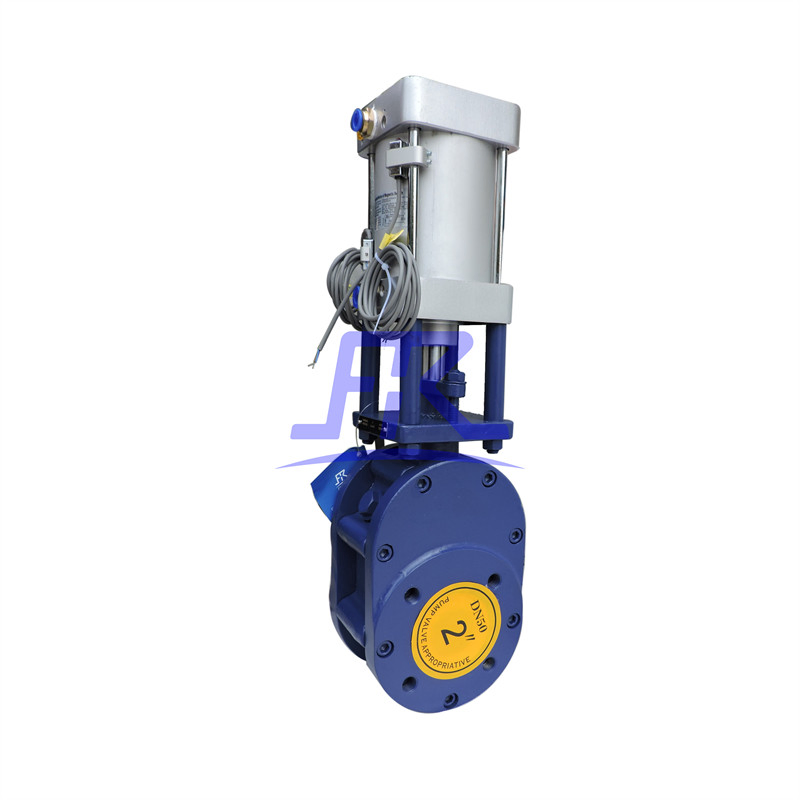

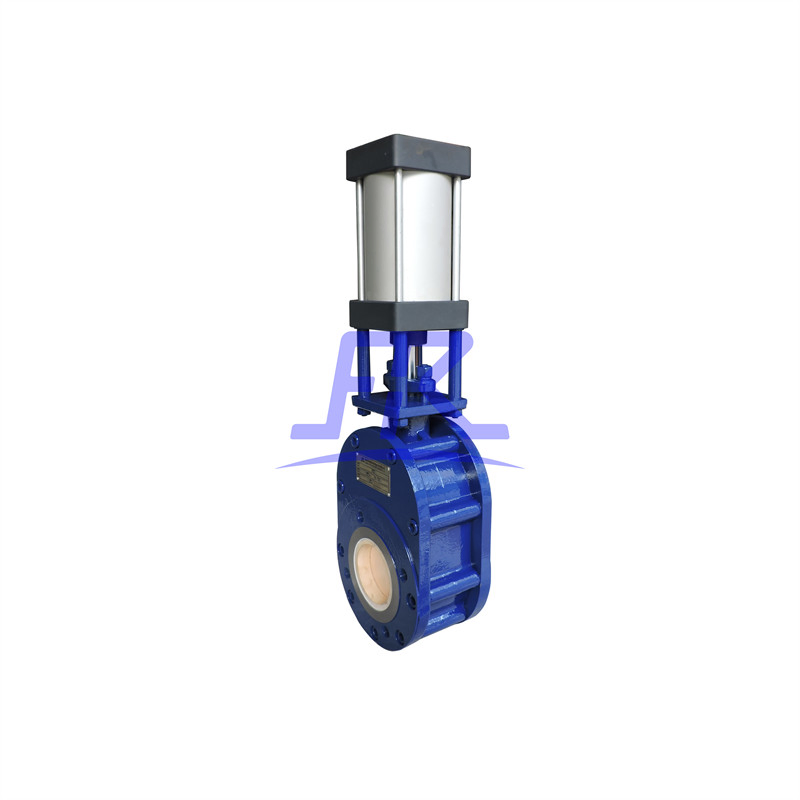

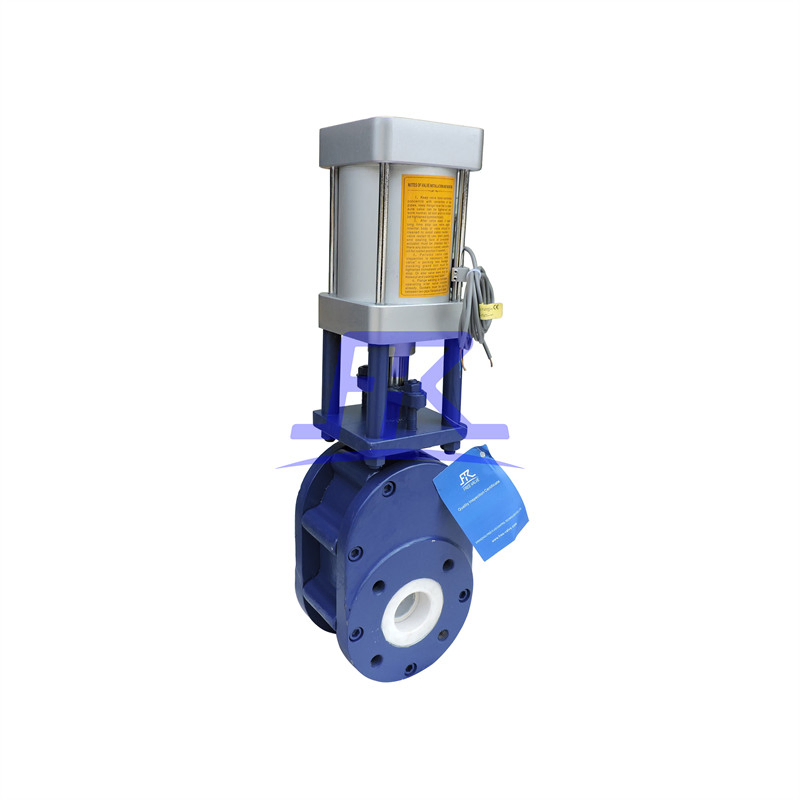

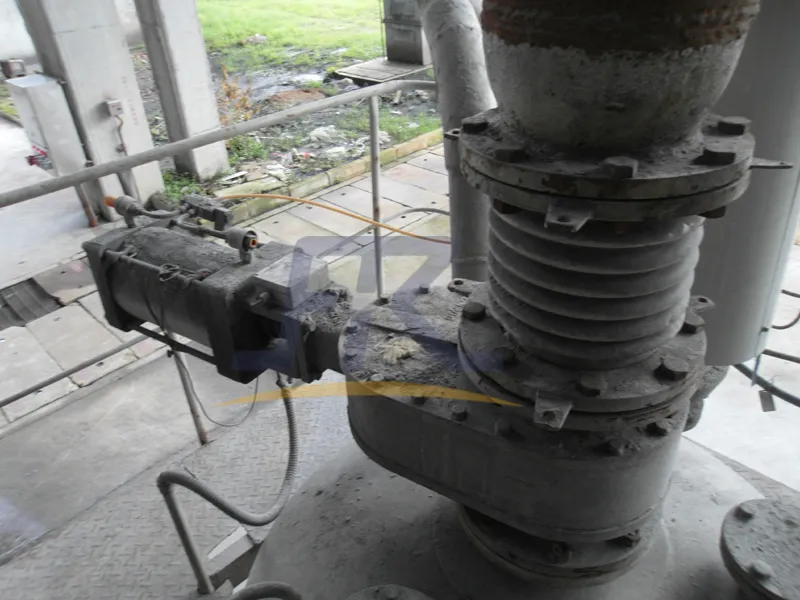

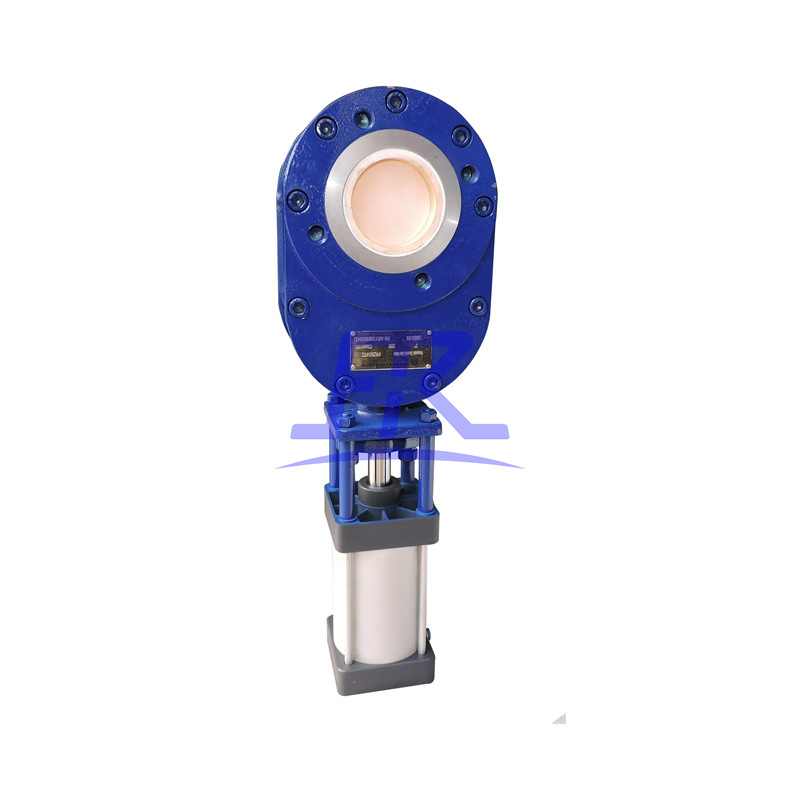

The Pneumatic Flangeless Wafer Ceramic Lined Dual-Plate Balance Discharge Gate Valve is mainly used in feeding and dumping dry powder and transport pipelines. It adopts toughening ceramic as shut-off and wear-resistance material. The design features a self-sealing pressure construction and auto-rotating valve discs, ensuring the sealing surface remains durable during frequent opening and closing processes, guaranteeing long-term performance.
| No. | Parameter | Details |
|---|---|---|
| 1 | Size Range | NPS 2 ~ NPS 14, DN 50 ~ DN 350 |
| 2 | Nominal Pressure | Class 150 / PN10 / PN16 |
| 3 | Applicable Temperature | 0 ~ 200ºC |
| 4 | Connection Type | Flange |
| 5 | Disc Material | Carbon steel + Ceramic / Stainless steel + Ceramic |
| 6 | Seat Material | Ceramic |
| 7 | Face to Face | GB/T12221, ASME B16.10 |
| 8 | Operating Type | Pneumatic |

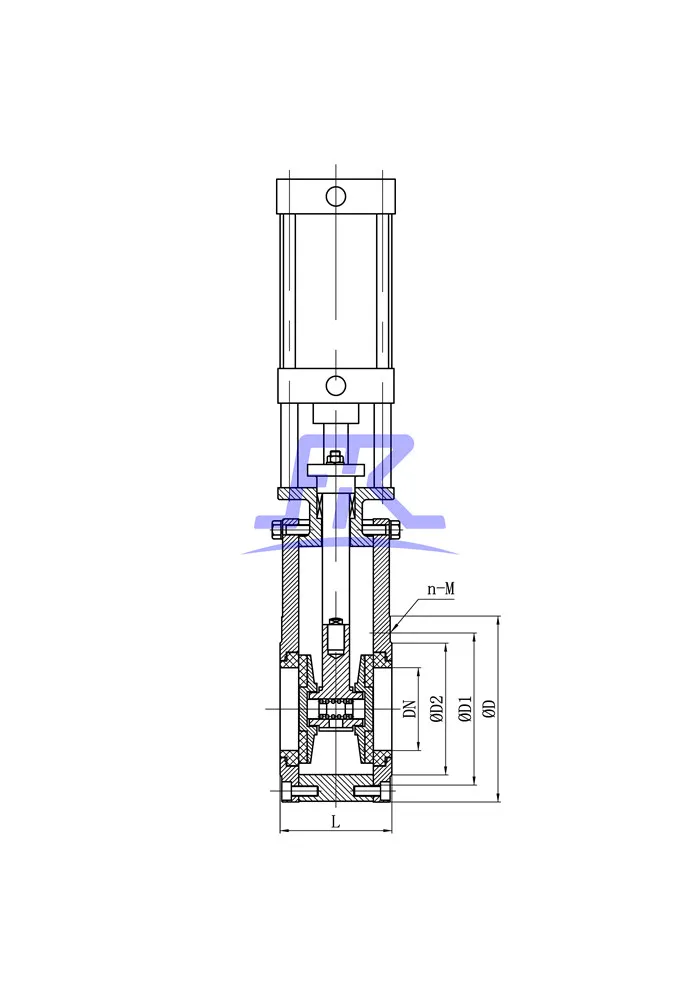

*Note: Face to Face dimension "L" can be customized according to requirements.
