Basic Info.
Industrial ceramics are widely used in power, coal, metallurgy, chemical industry and other industries as an abrasive material and corrosive medium. It is an ideal wear-resistant and corrosion-resistant pipeline, used to transport sand, coal, ash and aluminum liquid, suitable for different high-temperature pipeline inner diameters.
Applications include:
- Mine: Coal water slurry, coal washing slime, mine filler, pulverized coal
- Metal mines: Pipeline transportation of concentrates and tailings
- Metallurgy: Blast furnace coal injection and slag conveying pipelines
- Steel-making: Conveying ferroalloys and refining outside the furnace
- Cement plants: Ash removal, slag discharge, and powder feeding

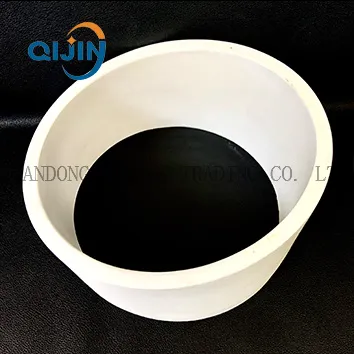

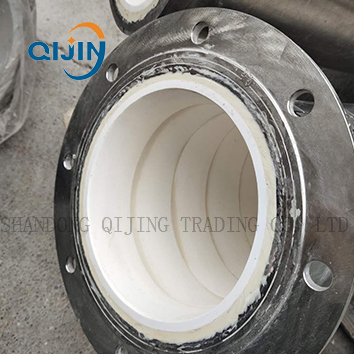

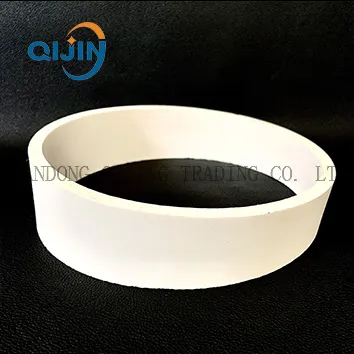

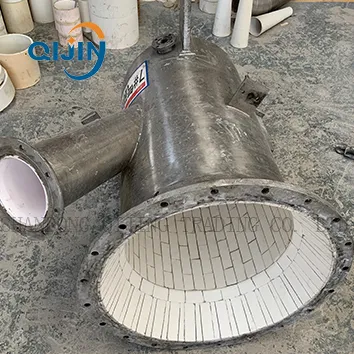

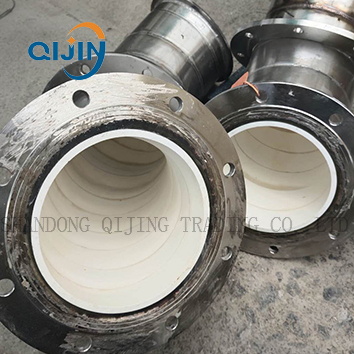

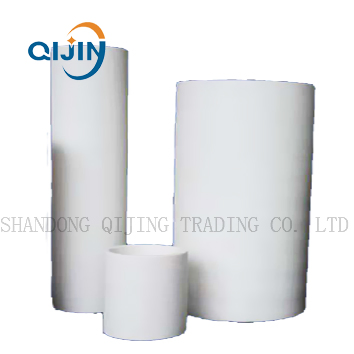

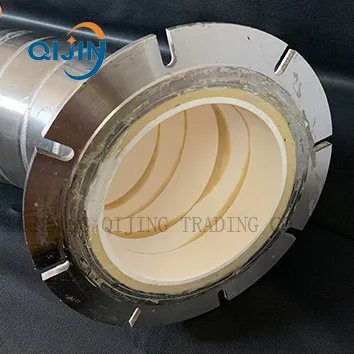

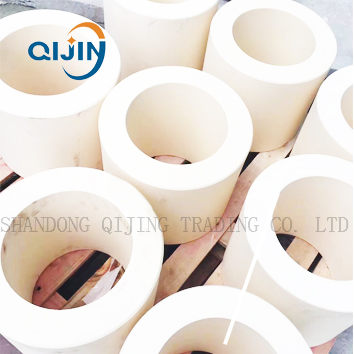

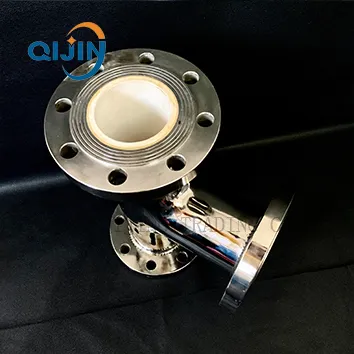

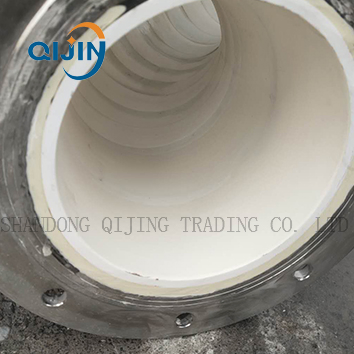

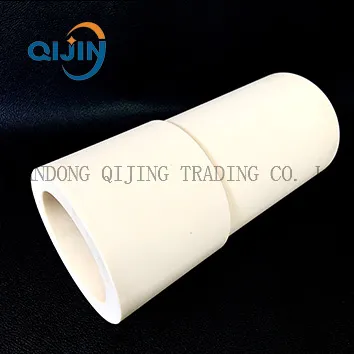

Photo Show
Ceramic Pipe Advantages
- High hardness
- Superior abrasion resistance
- Corrosion and chemical resistance
- Light weight
- Low maintenance cost: Reduced maintenance frequency
- Good fluidity: Smooth surface ensures free flow without blocking

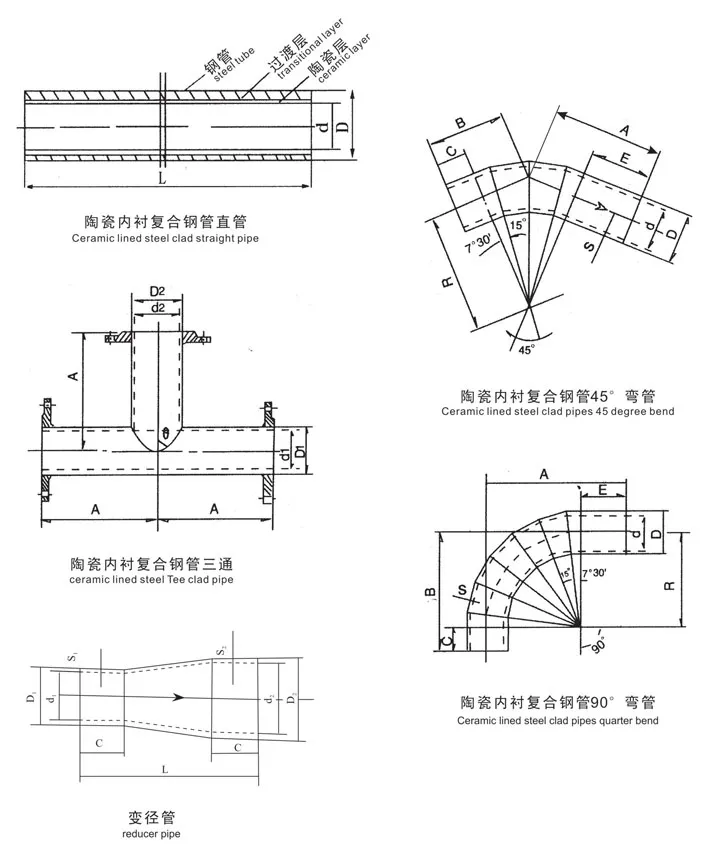

Pipe Sizes
| Product | ID(mm) | OD(mm) | Thickness(mm) | Length(mm) | R(mm) | Degree |
| Straight Tube | 76 | 106 | 15 | 150-250 | / | / |
| Straight Tube | 100 | 140 | 20 | 305 | / | / |
| Straight Tube | 150 | 185 | 17.5 | 150-250 | / | / |
| Straight Tube | 200 | 240 | 20 | 305 | / | / |
| Bend | 76 | 106 | 15 | / | 400 | 7.5 |
| Bend | 150 | 185 | 17.5 | / | 1500 | 3 |
| Ceramic pipe sizes range: 10~500 mm |
Transport and Installation Precautions
- Handle gently to avoid serious collision or direct impact on the ceramic layer.
- Bending pipes must be installed following the flow direction arrow.
- Align with the center line; displacement should be within 1.0mm.
- Flexible joints should be adjusted symmetrically with 3-5mm expansion clearance.
- For flange connections, the flange end must be flush with the composite pipe.
- Welding is possible with 45°-60° "V" type slope Angle (2-4mm) and 0.8-1.2mm gap.
Package
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a professional factory specializing in industrial ceramics.
Q: How long is your delivery time?
A: Generally it is 15 days if the mould sizes are in stock, or 25 days if not in stock, depending on the quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we offer stock samples for free, though customers are responsible for the freight cost.
Q: What are your terms of payment?
A: For new customers, 100% T/T in advance. For regular customers, 30% T/T in advance, balance against B/L copy.
Q: Can the ceramic pipe sizes be customized?
A: Yes, our ceramic pipe sizes range from 10mm to 500mm and are fully customizable to meet specific requirements.
Q: What industries typically use these ceramic lined pipes?
A: They are widely used in power plants, mining, metallurgy, cement plants, and chemical industries for wear and corrosion resistance.
